PCBA solution development
Translate product functions, interfaces, BOM, mechanical constraints and test requirements into a manufacturable board-level solution
ENGINEERING TO CONTROLLED DELIVERY
PCBA manufacturing built around your files, quality plan and delivery target.
PCBA solution development, coordinated PCB fabrication, component sourcing, SMT, through-hole assembly, inspection and testing, packing and delivery.
Coordinated scope01PCBA solution development02Component sourcing03SMT assembly04DIP / THT05Inspection & testing06Packing & delivery
01 / PROJECT FIT
Applications reviewed around the product, not a fixed package.
Six representative directions. Board architecture, sourcing, programming, testing and enclosure constraints are reviewed from your files.
Terminal product applications
Six representative terminal products show how the application scenario shapes the PCBA customization scope; the final solution is confirmed after file review.
| Terminal product | Application scenario | Customization focus |
|---|---|---|
| Smart home control panel | Smart homes, building control and connected device management | Touch display, Wi-Fi/Bluetooth, interface adaptation, firmware programming and system functional test |

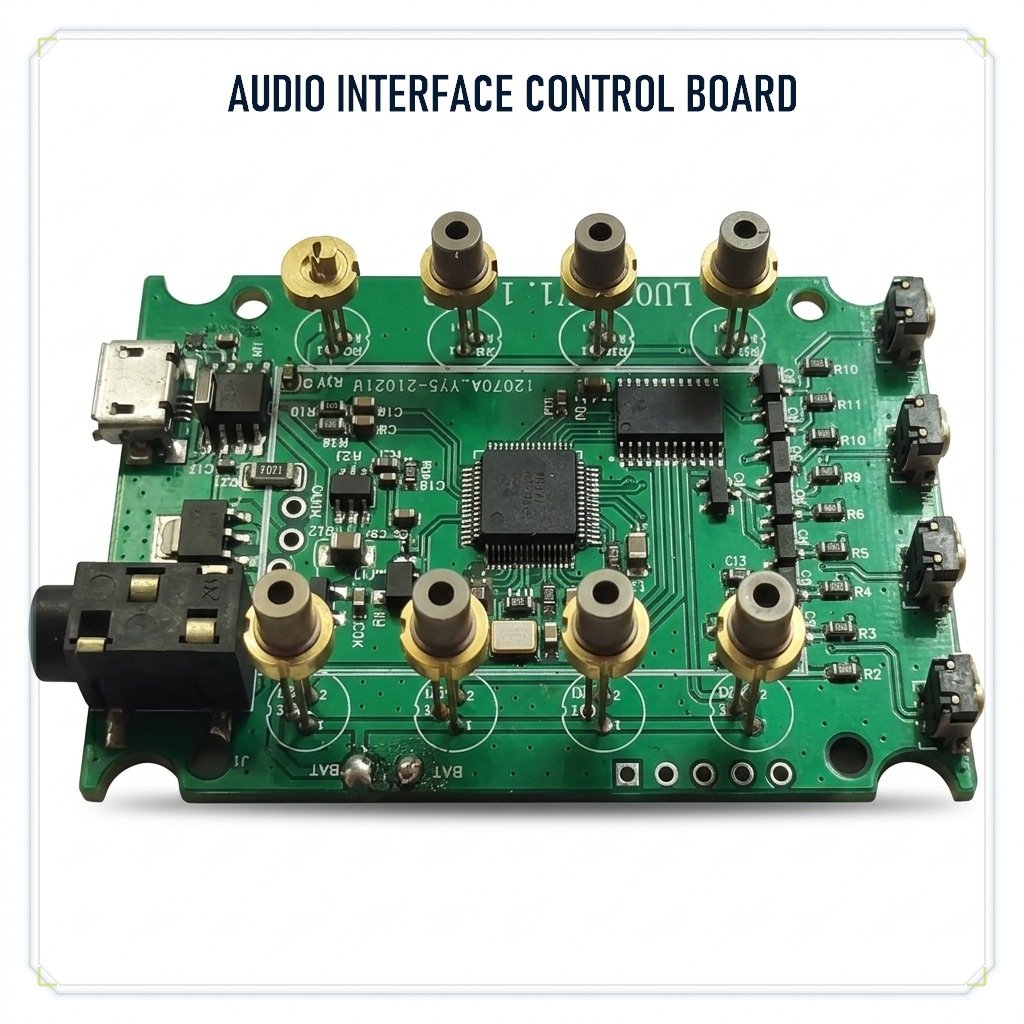

| Professional audio console | Recording, live streaming, conference audio and signal routing | Multi-channel audio, low-noise power, control layout, connector selection and audio performance test |
| Portable beauty device | Home skincare, personal care and portable treatment equipment | Battery management, constant-current drive, buttons/display, temperature control and safety protection |
| USB-C docking station | Laptop, tablet and office peripheral expansion | High-speed signal integrity, PD power, interface compatibility, thermal management and EMI optimization |
| Industrial serial touchscreen | Automation equipment, HMI terminals and production-line control | RS-232/RS-485/CAN, display and touch, EMC protection, firmware and aging test |

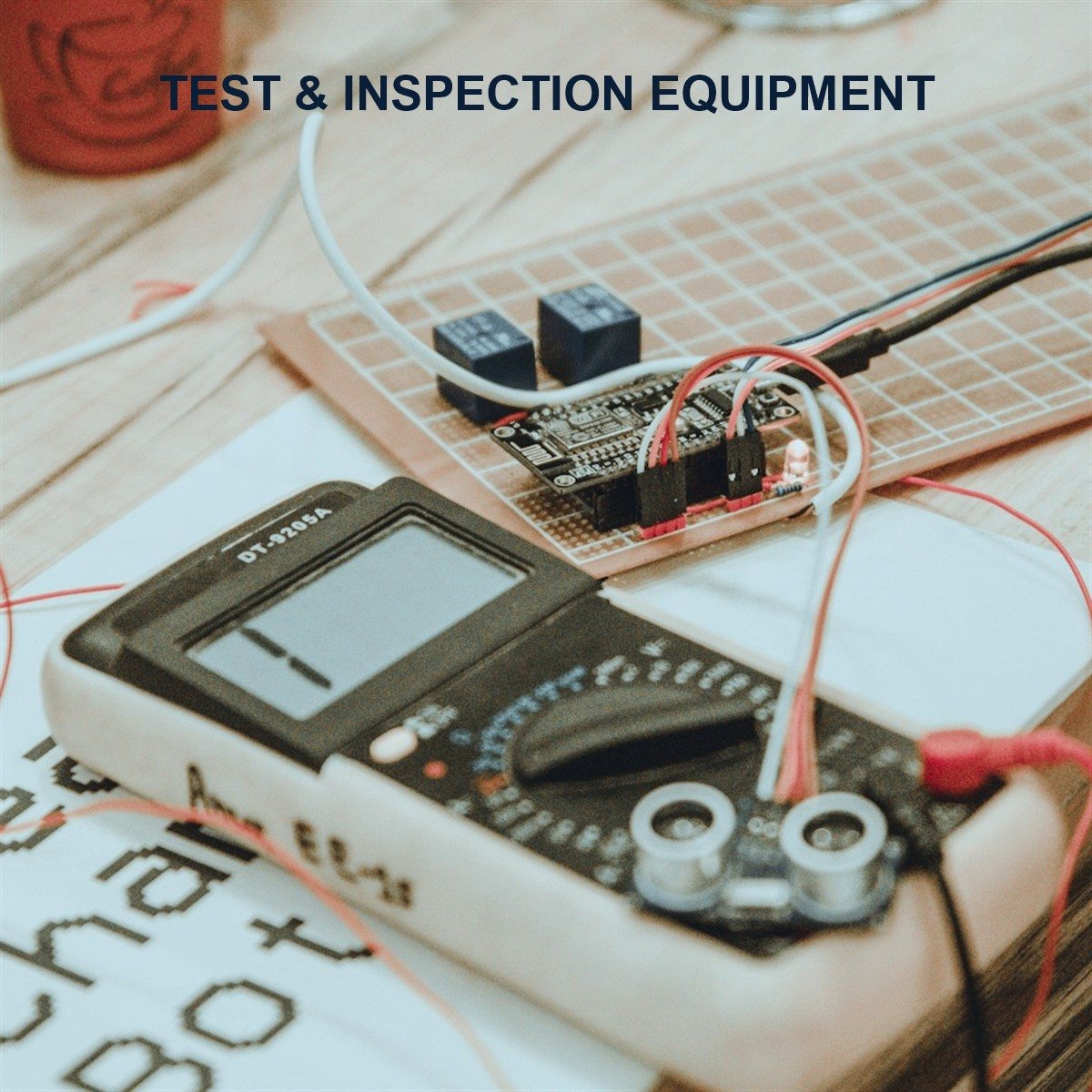

| PCBA test & inspection instrument | Electronics assembly test, repair diagnostics and quality inspection | Signal acquisition, measurement accuracy, calibration workflow, test fixtures and data records |
02 / MANUFACTURING COVERAGE
One coordinated path from bare board to tested assembly.
A quotation starts with the files and the quality requirements that matter to your product.
Sourcing
BOM review, critical parts, alternates and incoming control
Assembly
Stencil, SMT, reflow, THT, selective or manual soldering as required
Verification
AOI, X-ray, ICT, FCT, programming or burn-in as defined
03 / SERVICE DIRECTORY
PCBA services mapped to the project stage.
Use the service scope that matches your next engineering or production decision; final requirements are confirmed from the project files.
PCBA solution development
Board functions, interfaces, BOM and mechanical constraints are reviewed into a manufacturable route.
PCB fabrication coordination
Bare-board requirements, revision control and incoming checks are aligned before assembly.
SMT and through-hole assembly
Stencil, SMT, reflow, DIP/THT and soldering steps are selected for the approved release.
Component sourcing
BOM review, critical parts, alternates and incoming control are recorded against the project revision.
Inspection, programming and testing
AOI, X-ray, ICT, FCT, programming or burn-in are chosen and documented per project.
Packing and delivery records
Labels, serialization, packing, shipment documents and lot traceability close the release.
04 / FACTORY & QUALITY CONTROL

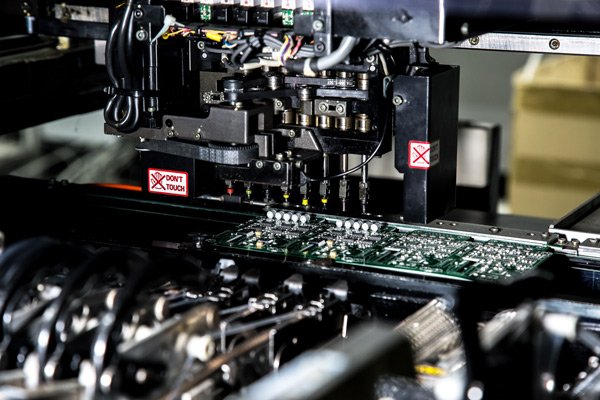

Factory and quality control evidence for the production route.

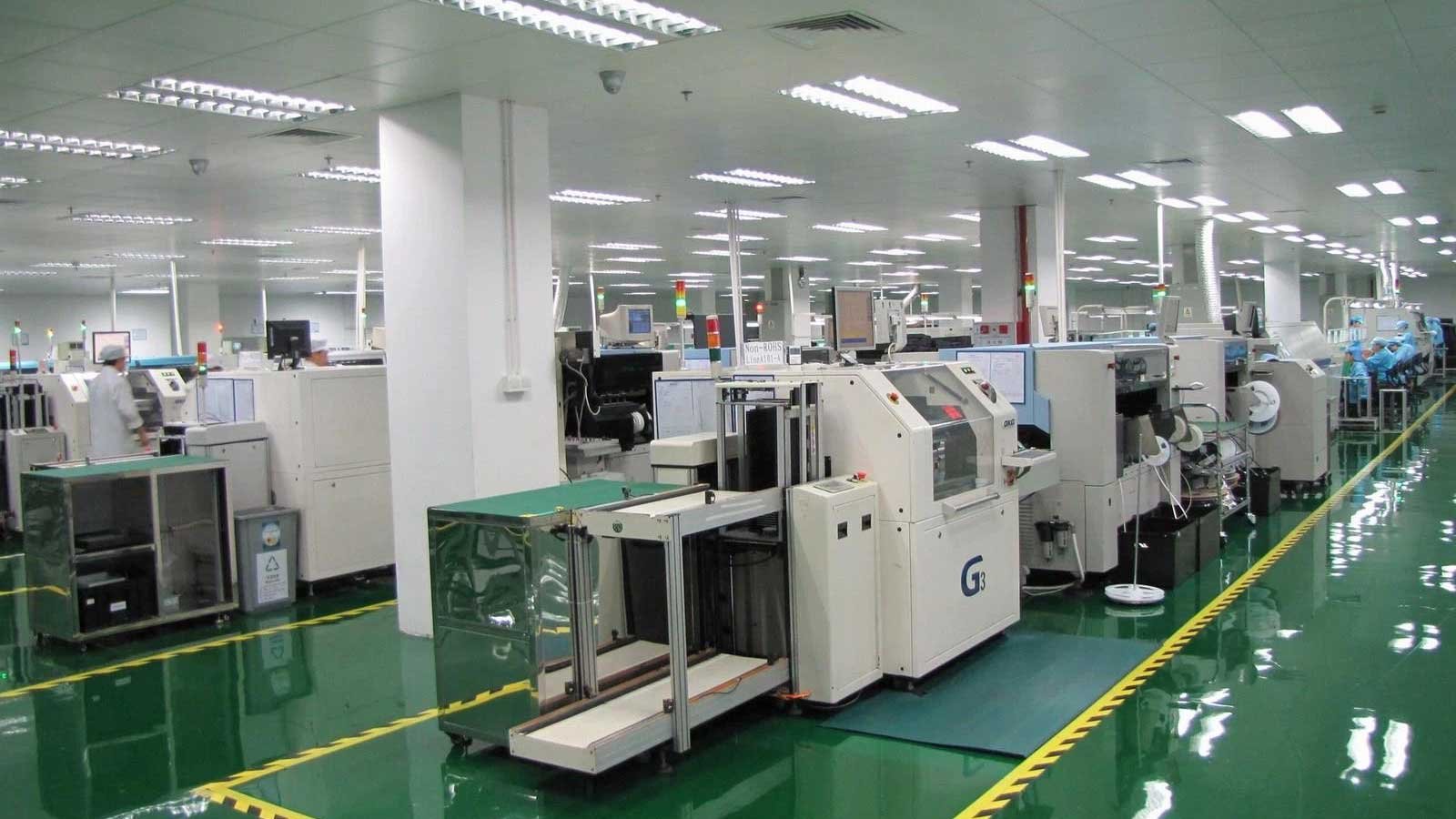

Production coordination, inspection evidence and delivery release are shown as project checkpoints. The final scope is confirmed from your files.
05 / PCBA SOLUTION DEVELOPMENT
Develop your files into a manufacturable PCBA route.
Solution development organizes product goals, board files and acceptance requirements into one reviewable, quotable and releasable manufacturing route.
Bring the project data you already have. We identify open questions before they become production changes.
01 / ENGINEERING DEVELOPMENTSolution development only
PCBA solution development
- DFM/DFT and open-question review
- BOM, alternates and process scope
- Quality plan
Best for projects that only need design review and a customized solution.
Request solution development02 / DEVELOPMENT + BUILDSMT processing
PCBA solution development + SMT processing
- Includes the engineering development scope
- SMT-related process and first-article review
- Production standard established from the confirmed sample
Best for projects that need finished boards, not only a developed solution.
Submit a production enquiryScope boundary
Solution development defines how the route should be made and verified; adding SMT processing and production extends it to stencil, placement, reflow, first article and production records.
06 / CONTROLLED PRODUCTION
A visible route from requirements to shipment records.
Each gate makes the next action clear. Optional inspection and test methods are selected for the project, not presented as universal inclusions.
Intake
Files, quantity, target date
Review
Scope, DFM/DFT, sourcing
Build
PCB, SMT and THT
Verify
Inspection, test, OQC

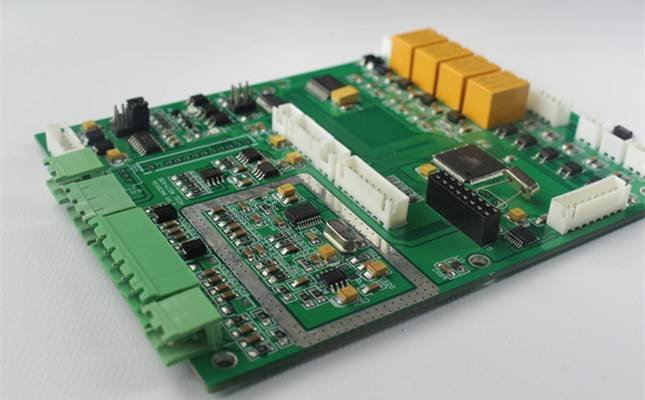

Deliver
Labels, packing, records

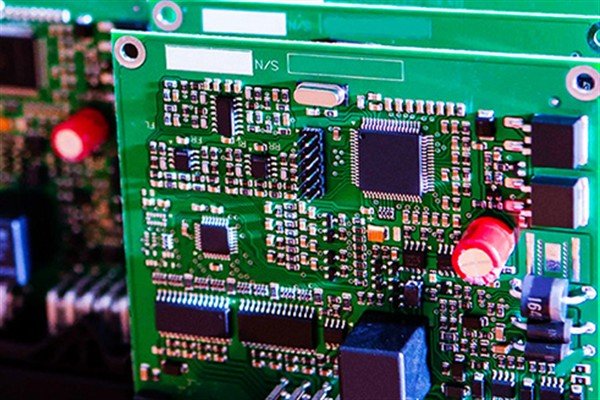

07 / DELIVERY CONTROL
Delivery requirements are part of the production release.
Define labels, serialization, packing, shipment documents and destination requirements before production closes.
- 01Revision and lot traceability
- 02OQC and test record package
- 03Label and serialization rules
- 04Packing and shipment records
08 / FAQ
Questions answered before a PCBA quotation.
A short, practical guide to the information that makes an engineering review useful.
What files are needed for a PCBA quotation?
Start with Gerber or ODB++, BOM, CPL/XY, quantity, target date and any special process or test requirements.
How is the manufacturing scope confirmed?
The files are reviewed for board, material, assembly, programming, inspection and delivery requirements before the quotation scope is released.
Are inspection and testing included by default?
Inspection and test methods such as AOI, X-ray, ICT, FCT, programming or burn-in are selected and recorded per project.
How do I start an engineering review?
Use the RFQ workspace to generate an enquiry email, then attach your project files in your own email client.
09 / RFQ WORKSPACE
Prepare the project data for an engineering review.
Generate a structured enquiry email. Files remain on your device until you attach them in your email client.
info@kgpcba.comREADY FOR FILE REVIEW?
Start with the files. Leave with a defined manufacturing route.
Send Gerber/ODB++, BOM, CPL/XY, quantity, target date and test requirements for review.
